Stainless steel Hose reeler VA 6.25.13

suitable for max. 25 m hose NW 13


Hose reeler VA6000 (569.9KB)

Manual VA 6.25.13 (72.7KB)

Hose Series VA6000

The flexible connection from the hard line to the point of use. For hose lengths from 20m to 50m. advantages:

  • Special system for "hygienic environments" such as hospitals, kitchens, abattoirs ...
  • and aggressive for the production media, such as the chemical industry
  • Fully Stainless Steel
  • Lock with 2 Einrastmöglichkeiten per revolution
  • Lightweight hose replacement, delivery, optional with or without hose
  • Custom-possible depending on operational requirements

ArtNo.VA 6.25.13VA 6.40.13VA 6.50.13VA 6.20.19VA 6.30.19VA 6.40.19VA 6.50.19VA 6.20.25VA 6.30.25VA 6.40.25VA 6.50.25
Total weight42 kg61 kg63 kg43 kg50 kg63 kg65 kg48 kg70 kg70 kg70 kg
Hose length in m2540502030405020304050
Operating pressure in bar3030303030303030303030
Hose nominal width in mm1313131919191925252525
Hose nominal width in Zoll1/2"1/2"1/2"3/4"3/4"3/4"3/4"1"1"1"1"

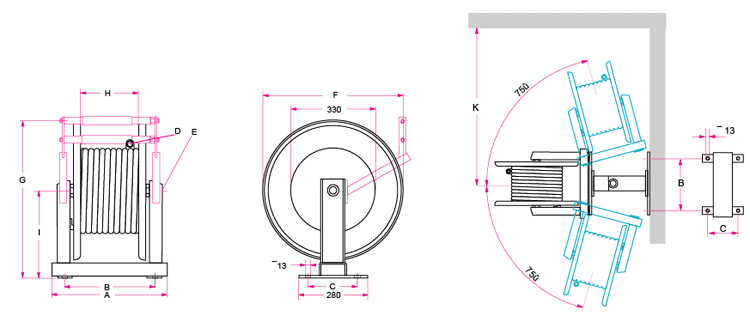

Dim A in mm440440440440440440440440600600600
Dim B in mm360360360360360360360360530530530
Dim C in mm230230230230230230230230230230230
Dim F in mm520550620550620620700620620650650
Dim G in mm615625700625700700780700700735735
Dim G in mm (Diameter)233233233233233233233233390390390
Dim I in mm345345390345390390430390390410410
Dim K in mm570600670600670670750670670670700
Dim M in mm570600600600670670750670670670700
Dim E in ZollG 3/4"iG 3/4"iG 3/4"iG 1"iG 1"iG 1"iG 1"iG 1"iG 1"G 1"iG 1"i
Dim D in ZollG 1/2"iG 1/2"iG 1/2"iG 3/4"iG 3/4"iG 3/4"iG 3/4"iG 1"iG 1"G 1"iG 1"i
