Hose reeler BT 4024-B
open type incl. 2 m air pressure hose NW4
1797
Hose reeler BT4000 open (557.6KB)
Hose Series BT4000
The flexible connection of the compressed air line to the hard tool. For hose lengths of 8m to 20m. advantages:
- Due to decades of experience praxisbewärtes system
- Robust metal construction with maintenance-free ball bearing
- Surface plastic coated
- Lock with 2 Einrastmöglichkeiten per revolution
- Quality PVC hoses with NW6 NW9 and
- Upgradeable through special accessories for each individual operational requirement
ArtNo. | BT 4024-B | BT 4086-B | BT 4126-B | BT 4206-B | BT 4089-B | BT 4129-B | BT 4209-B |
---|---|---|---|---|---|---|---|
Total weight | 1.4 kg | 8.5 kg | 10 kg | 16.5 kg | 9 kg | 14.5 kg | 20 kg |
Hose length in m | 2 | 8 | 12 | 20 | 8 | 12 | 20 |
Hose DN in mm | 4 | 6 | 6 | 6 | 9 | 9 | 9 |

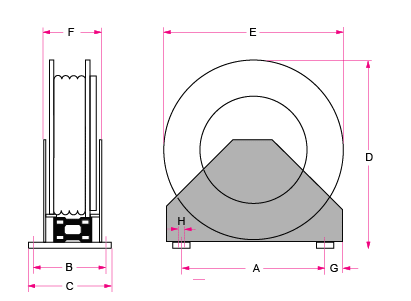

Dim A in mm | 100 | 240 | 280 | - | 280 | - | - |
Dim B in mm | 40 | - | - | - | - | - | - |
Dim C in mm | 75 | - | - | - | - | - | - |
Dim D in mm | 116 | 315 | 355 | - | 355 | - | 445 |
Dim E in mm | 114 | 300 | 340 | 400 | 340 | 400 | - |
Dim F in mm | 75 | - | - | - | - | - | - |
Dim G in mm | 7 | - | - | - | - | - | - |
Dim G in mm (Diameter) | 6.5 | - | - | - | 8.5 | - | - |
